Panel and Image Perfectly replicates 16 ICP bl.50 button layout and integrates DED screen. Button layout matches the in-game aircraft versions of DCS and BMS. Three-dimensional panel design with authentic positioning, long-travel high-difference buttons, and VR-friendly. 4 precision-molded injection-molded damped thumbwheels with excellent tactile feedback. WARN RESET adopts the single-side self-centering toggle switch, matching the real aircraft. Backlight can be adjusted in sync with the game or customized using axes for control. DED screen features a 4.58-inch industrial-grade dot matrix display with a resolution of 200*65 and an added transparent acrylic cover for a realistic depth visual experience. In-house developed transmission protocols and firmware programs drive the industrial-grade dot matrix display, faithfully reproducing the authentic representation of classic fighter jets from decades ago, resulting in a distinct realistic dot matrix display experience different from modern digital displays.
Better Applicability: The DED screen can be adapted for generic displays on other aircraft modules (e.g., A10 countermeasure settings and CMS information display). *Note: Adaptation for specific modules will be available after release. Compatible with both DCS and BMS platforms. Configuration and Parameters: ICP Silicone backlight buttons * 23, with a key travel of 1.2mm Three-position non-self-centering toggle switch * 1 Three-position single-side self-centering toggle switch * 1 Five-way hat switch * 1 Axes * 4, with a single active travel of 220 degrees and a resolution of 0-4095 4.58-inch dot matrix display, with a resolution of 200*65 and adjustable brightness
Tecnología y Durabilidad Excelentes:
Botones:
Recorrido largo para evitar pulsaciones accidentales.
Retroiluminación integrada.
Keycaps moldeados industrialmente con alta precisión.
Molde estructurado 1:1 con superficie texturizada 3D.
Retroiluminación ajustable con soporte para sincronización automática del juego y control en red.
Ruedas de pulgar con marcas grabadas mediante tecnología de transparencia hueca, garantizando precisión, limpieza y resistencia al desgaste.
Pantalla DED de calidad industrial, matriz de puntos de 4.58 pulgadas con resolución de 200 × 65.
Diseño Modular:

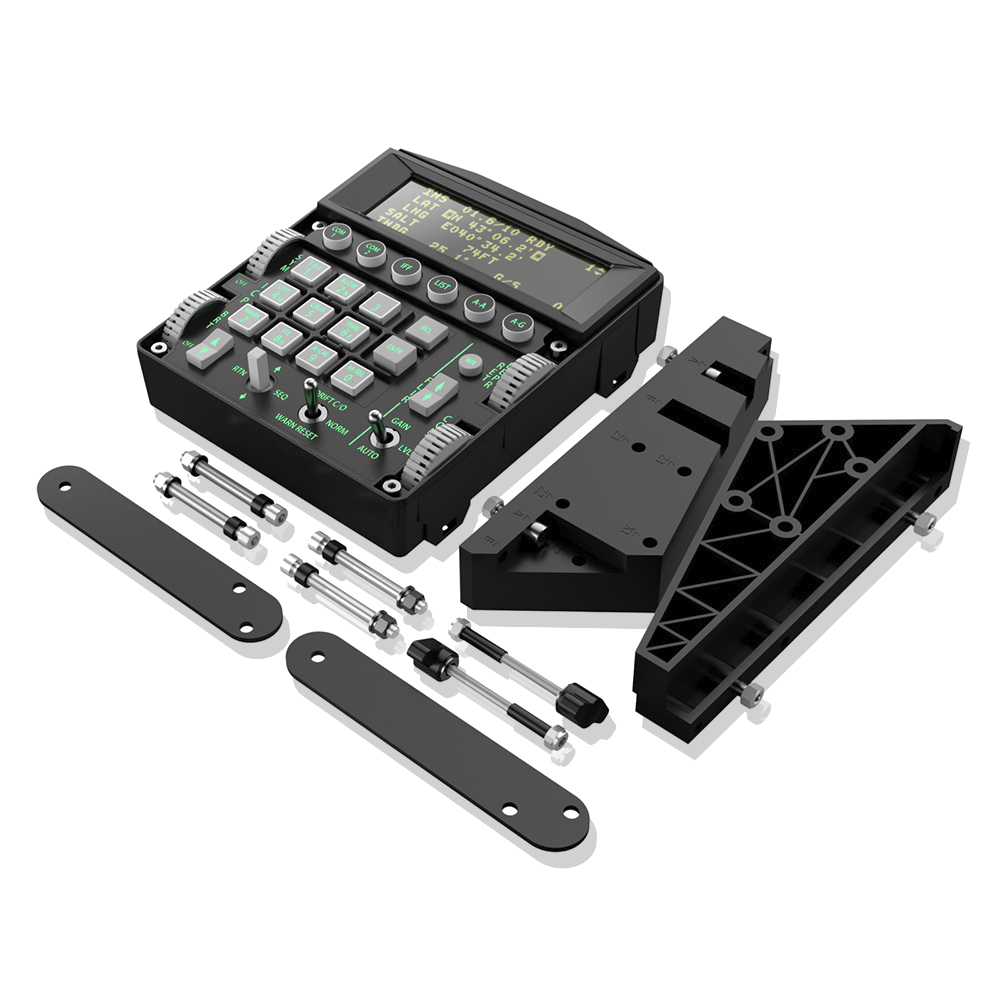

El ICP incluye soportes de montaje.
Compatible para combinarse y cambiarse rápidamente con UFC.
Puede colocarse sobre el escritorio o montarse de forma segura en el borde de la mesa utilizando el accesorio de sujeción MP1 o instalarse directamente en un marco de perfil de aluminio 4080.
