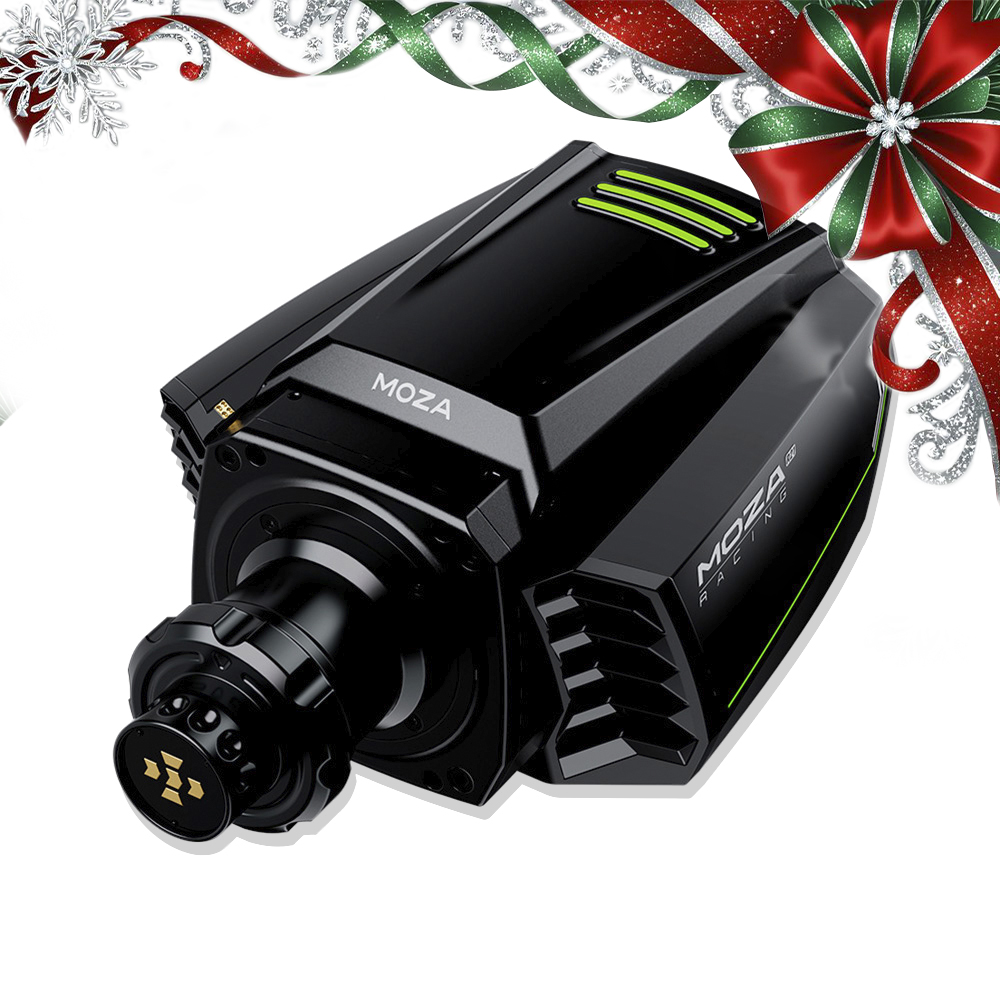

Moza R21 wheel base

Modern and Elegant Design
Inspired by current supercar trends, the R21 features a robust design with two-tone paint.

Robust Aluminum Body
The R21 is made from an aluminum alloy, giving the base a solid and weighty feel.

Ultra Low Static Torque
Feel it all through an optimized motor design, delivering virtually zero torque ripple, irregularities or cogging. Combined with powerful torque delivery, hard braking, curbing and skidding are clearer and stronger than ever.

Upper Temperature Control
Enjoy consistent and reliable temperature performance with the R21. Even in extended endurance races, the R21 will never reduce output or fade due to overheating. Onboard real-time temperature monitoring means you'll never miss a session.

262,144 Resolution Points
The R21's encoder incorporates ultra-high precision steering wheel position monitoring, allowing for clear and precise feedback during the race.

Hands-Free Protection
This function can effectively avoid the risk of injury and help quickly restore control by detecting that your hands are off the steering wheel. Once activated, it will quickly stop any wobble and center the steering wheel safely.

Velocity Dependent Force Feedback Damping
This feature will increase the FFB damping effect as vehicle speed increases and reduce damping as vehicle speed decreases, accurately imitating a real racing car, resulting in greater high-speed stability and low-speed maneuverability. speed.

MOZA Pit House Control Software
The MOZA Pit House control suite allows for maximum customization of your racing experience. View the status of each device, adjust maximum steering angle, force feedback, pedal travel, LED indicators, and more.

Force Feedback Equalizer
MOZA's FFB EQ allows customization and fine-tuning of the FFB effects spectrum for a perfect setup in any condition.

Next Generation FFB Filtering Algorithm
The base R21 DD is powered by MOZA's latest force feedback filtering algorithm, providing enhanced dynamic feedback that displays oversteer and understeer more clearly and richly.

Dual Mode Communication
The base and flywheel are connected by a military-grade conductive slip ring with a lifespan of more than 5 million revolutions. Simultaneously, the base communicates wirelessly with the steering wheel. This distinctive patented design offers exceptional stability and durability, allowing for infinite, high-speed rotation without interruption.

Multiple Connection Ports
With the ability to directly connect the MOZA pedals, gearshift, handbrake and digital dash to the base, not only do you retain USB ports on your PC, but you also unlock the potential for simultaneous use of multiple devices.

Front Mount Compatibility
With four front holes designed for MOZA's front mounting bracket, this versatile design supports front and side mounting options, optimizing legroom and accommodating formula-style seating preferences.

Specifications:
Platform: PC
FFB Traction System: Direct Drive
Communication Method: Wireless
Maximum Turning Angle: Unlimited
Shell Material: Aviation Grade Aluminum Alloy
Color: Black
Peak Power: 480W
Input Voltage: 110V~220V AC —> 36V DC
USB Refresh Rate: 1000Hz
V struts: Supported
Encoder Resolution: 262144ppr (18 bits)
Indicator: Yes
App Features: Supported
Quick Release: Supported
Connection Ports: Power, DC Input, E-stop, USB (Pogo pins for RM board)
Accessories: User manual, warranty card, power supply, USB cable, tool kit
Mounting Method: Bottom Mount
Side Mount Option: With optional side/front mounting bracket
Desk Clamp: Optional
Emergency Stop Switch: Optional
Online Firmware Update: Applicable
Firmware Update: Applicable
Dimensions (L x W x H) (mm): 327 x 170 x 130
Weight: 8.9kg
